Legacy Conversions

Modeling and Conversions

A certain sweet-spot is that we provide cost-effective options for legacy or dated engineering designs and drawings that need to be ported to new generation CAD systems. Our extensive experience with AutoCAD, CATIA, Pro-E, Solid Works, Inventor, and Unigraphics is testament. Capabilities are not limited only to conversion of conventional drawings from various systems, TIFF or PDF to 3D models and 2D drawings.

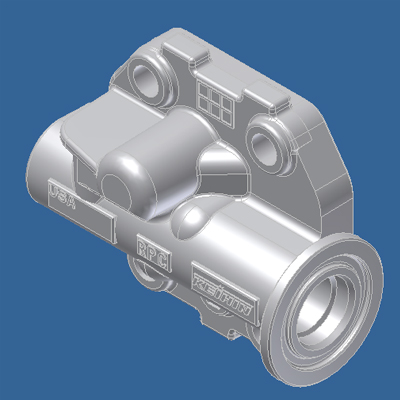

360 digital models enable clarity and detail to design, which is normally not the case with 2D drawings. Our engineers convert legacy or dated design content and data to deliver parametric, feature-based fully associative 3D CAD models. Empowered by the latest cutting-edge software technology available, it is established that 3D digital solid modelling presents unprecedented possibilities for design improvement and cost reductions.



CAPABILITIES

  • 2D to 3D

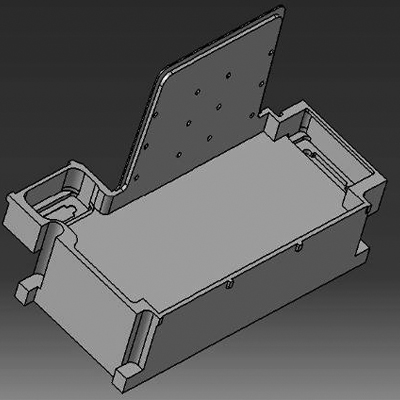

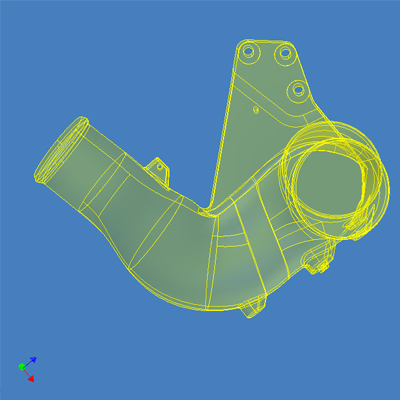

  • Surface & Solid Modeling.
  • Parametric feature based modeling.
  • Complex 3D geometric assembly modeling using both top down and bottom up technique.
  • Creation of an intelligent, fully functional database of drawings required for each and every phase of production cycles.
  • Final deliverables that cater to specific customer requirements and standards.
